Description

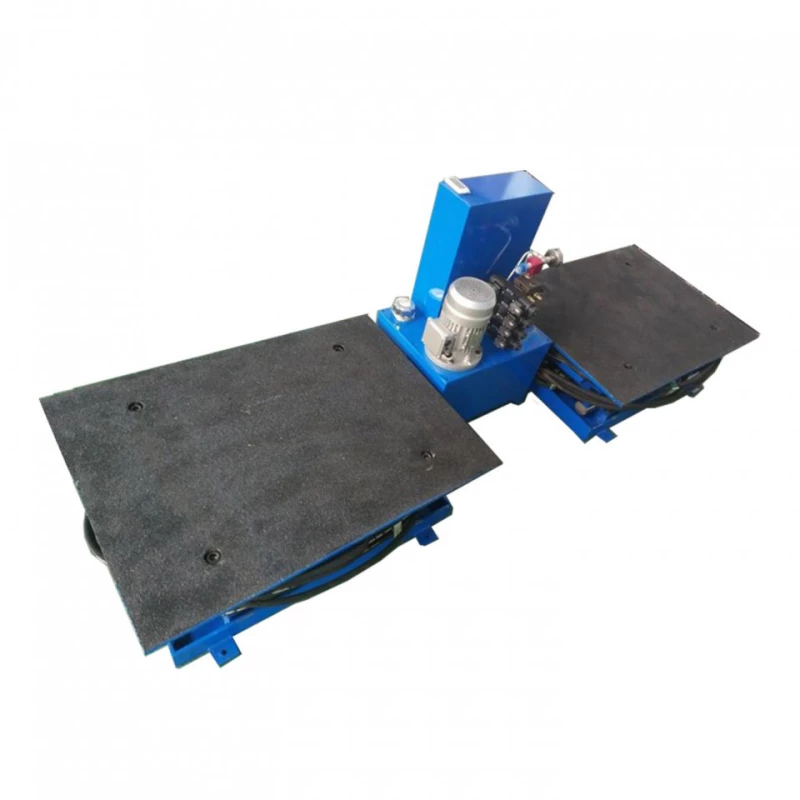

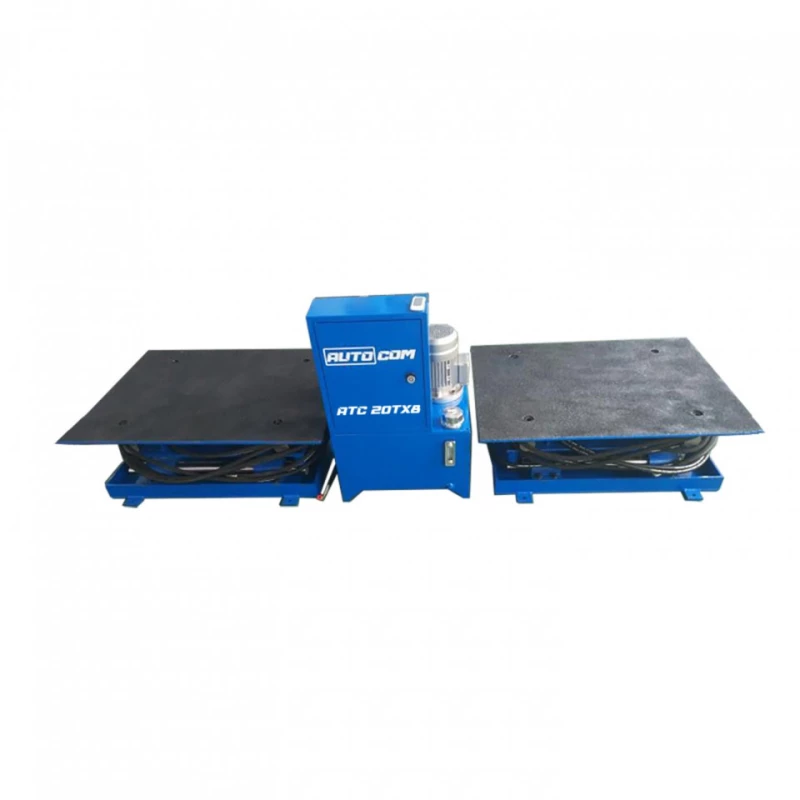

Autocom Class II Car Joint Play Detector
- Joint play detector to quickly and easily check the vehicle’s suspension and steering
- Each plate applies a load to the suspension components in 8 different directions to check for any play in the joints,
- Control unit with motor and hydraulic pump, operated by a WIRELESS remote control
- Hydraulically operated and made of special steel, the plates ensure long life and maximum power for any workshop with a high workflow.
GENERAL CHARACTERISTICS AUTOCOM – 4TX8
- Maximum weight per axle 4000 Kg
- Testing any type of Class II vehicles
- Compatible with channel according to RAR norms
- Automatic self-leveling of the plates after each test movement
- IR remote control
- The upper surface of the tiles is covered with an anti-slip material.
- Painted in electrostatic field
TECHNICAL DATA
| Maximum axle weight | 4000 Kg |
| Engine power | 2.2kW |
| Working pressure | 120 Bar |
| Friction coefficient | Dry > 0.8 Wet > 0.6 |
| Test force | 12,500 N |
| Relative humidity | < 95% |
| Test plate dimensions L x W x H | 760x500x160 |
| Working conditions temperature | Temperature -10 ÷ +40 ºC |
| Weight | 210 Kg |
DELIVERY CONTENTS
- Set of test plates for class II vehicles
- Central control unit
- User Manual CE Certificate – Declaration of Conformity
- Remote control for remote control
