CF52 with Davie 5.6.1 for DAF Truck Diagnostic Tool DAF VCI-560 MUX Diagnostic Scanner

The Vehicle Communication Interface 560 switches the input channel automatically to the required data line (K-line, L-line) or CAN-bus of the truckside “Diagnostic Connector”.

Specifications:

1. Dimensions (W x D x H) 126 x 214 x47 mm;
2. Power supply from the vehicle electrical system;

3. The DAF must be powered from the vehicle;

4. Rated voltages 8 to 32 V DC;

5. Current consumption in the load range Max. 1 A
If external power is interrupted, the DAF will be
buffered by the rechargeable battery;

6. Battery type NiMH 4,8V/1300mAh.

7. WiFi – optional.

Languages: English, German, Dutch, Danish, Czech, French, Italian, Finnish, Hungarian, German, Spanish, Norwegian, Russian, Greek, Polish, Turkish.

Systems Coverages:

CAB climate system;
Safety system;
Security system;
Transmission system;
CAB climate system;
Vehicle control system;
Door control system;
Instrumentation system;
Engine system;
Tachograph;
Communication system;
After treatment system;
Break system.

HD-OBD mode allows immediate selection of DAF independent control units and direct testing of their components and functions.

EOL (End Of Line) mode used in stations of the production area and allows programming, calibration, health check and diagnosing of newly produced vehicles.

Softwares:

1. DAF Davie XDc II Runtime 5.6.1 (Windows 7 supported)
2. DAF Davie Application 95.00
3. DAF Davie Parts Rapido Subset 19.04.F0

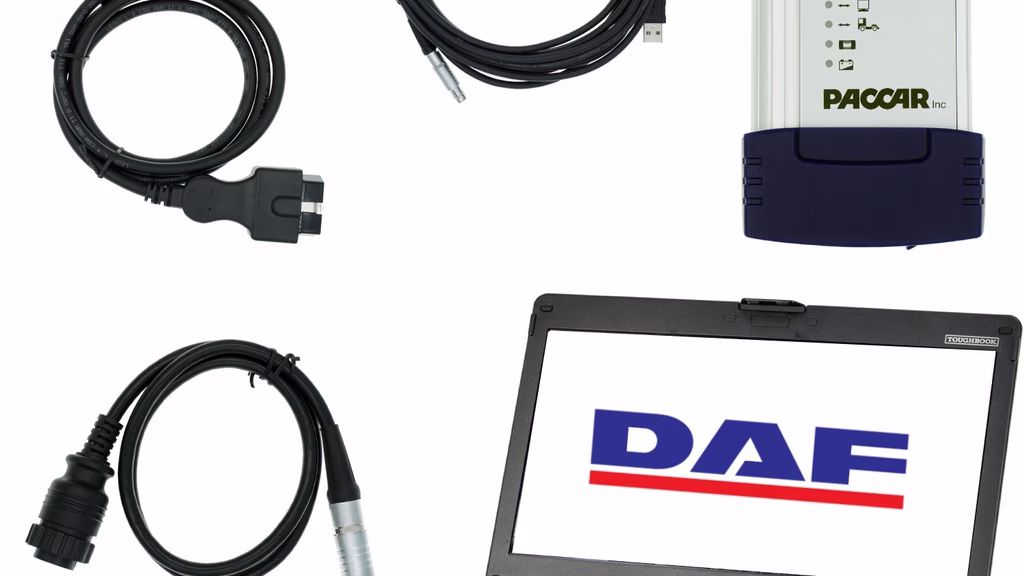

DAF VCI 560 kit:

DAF VCI-560 MUX diagnostic adapter;
VCI-USB Cable for connection with PC;
VCI Diagnostic cables ODU-OBD2, ODU-USB.
