EPROM Programmer SuperPro-610P Flash Memory Programmer (Programs EPROM, EEPROM, Flash Memory and other IC Chips)
EPROM Programmer SuperPro-610P Flash Memory Programmer (Programs EPROM, EEPROM, Flash Memory and other IC Chips) - Image 2
EPROM Programmer SuperPro-610P Flash Memory Programmer (Programs EPROM, EEPROM, Flash Memory and other IC Chips) - Image 3

EPROM Programmer SuperPro-610P Flash Memory Programmer (Programs EPROM, EEPROM, Flash Memory and other IC Chips)

0 Reviews Write a review

€700.00

Free Ship: America & EU. No Tax

Available to Order



Category:

Description

EPROM Programmer SuperPro-610P Flash Memory Programmer (Programs EPROM, EEPROM, Flash Memory and other IC Chips)



EPROM, EEPROM, Flash Programmer Description

PROGRAMMER HIGHLIGHTS

  • Supports 34,000+ flash memories, EPROMs, EEPROMs and other IC devices from 240+ IC manufacturers.
  • Supports low voltage devices with Vcc as low as 1.2v.
  • High programming throughput
  • USB 2.0 high-speed PC interface
  • Programmer-control S/W supports XP / Vista / Windows 7, 8 and 10
  • CE and RoHS compliant
    PROGRAMMER FEATURES


    DEVICE SUPPORT

  • IC Device types supported include:
    EEPROM, EPROM, Serial EEPROM, FLASH memory, Configuration Serial PROM, GAL, EPLD, Firmware HUB, Microcontroller, PIC, Standard Logic Device, etc.
  • Supports standard DIP and skinny DIP packages from 8 to 48-pins on standard equipment
  • Supports a wide variety of surface-mount devices (SMDs) and other IC packages with reliable factory-made adapters. Packages supported include: PLCC, CLCC, SOIC, LAP, QFP, TQFP, VQFP, TSOP, TSOPII, SOP, PSOP, TSSOP, SON, etc.
  • Free software updates can be downloaded via Internet at any time.

    Advanced circuitry inside:
    EPROM Programmer

    PROGRAMMER HARDWARE
  • The programming unit has 48 universal pin-drivers built-in. There is no need to add additional or optional pin-drivers for programming devices of up to 48-pins.
  • Since each pin-driver is software programmable, proper voltage levels will be applied to each and every pin, not just the Vcc pins, allowing true low-voltage programming for low-voltage devices.
  • Reverse insertion check and pin continuity check help to prevent devices from accidental damage.
  • Light-weight and portable, good for field applications and international travel (takes 110V to 240V AC).

    EASY-TO-USE PROGRAMMER SOFTWARE

    Programmer software SuperPro-610P

  • Supports XP / Vista / Windows 7, 8 and 10
  • User-friendly software allows you to do these and more, easily:
    • Read data from a master chip, put it in the data buffer
    • Save the data info t file
    • Program a new chip with this data
    • Erase a used EEPROM chip before program it
    • Secure the chip so that others cannot copy it
    • Load data from a file instead of from a master chip
    • Display the data buffer on the screen and allow you to edit it
    • Plus a whole lot more
      See how easy it is
    to use the software



  • The Auto-program command allows you to erase a chip, blank-check the chip, program it, and verify it, all automatically with just one click.
  • The Project function simplifies operations for your production people or yourself. Settings such as device selection, file name selection, device configuration, program options, etc., can be saved into project files.
  • Advanced functions allow you to do things that would be impossible to do with other chip programmers. These include:
    • Data splits: 1-to-2, or 1-to-4, for both byte-wide and word-wide devices.
    • Byte swap: for Intel or Motorola byte arrangements
    • Optionally do write-protection on selected sectors
    • Optionally do read-protection on selected blocks
    • Do specific device configurations for Microchip PIC micros
    • Setup counters so that your operator can easily keep track of how many chips have been programmed.
    • Plus a whole lot more
    PROGRAMMER SPECIFICATIONS


    IC CHIP DEVICE SUPPORT

  • IC Chip Device Types Supported:
    EPROM, Paged EPROM, Parallel and Serial EEPROM, FPGA Configuration Serial PROM, FLASH Memory (NOR), Firmware HUB, EPLD, Microcontroller, Microchip PIC, etc.
  • Device Packages Supported on Standard Equipment:
    DIP, SDIP.
  • Device Packages Supported with Optional Adapters:
    PLCC, JLCC, SOIC, QFP, TQFP, VQFP, PQFP, TSOP, TSOPII, SOP, SSOP, PSOP, TSSOP, SON, QFN, etc.

    IC CHIP DEVICE UPDATES

  • Software and device algorithms are updated regularly.
  • Current software can be downloaded free of charge
    UNIVERSAL Programmer software
  • Updates are available by mail at a nominal charge.

    HARDWARE & ELECTRICAL

  • PC interface: High speed USB 2.0

  • AC power supply: Input 100V-240V AC, 50/60 HZ. Output 12VDC, 2 Amp.
  • Programmer physical size: 7″ x 5″ x 1 3/8″ high (178 mm x 127 mm x 35mm)
  • Net weight (programming unit, AC power supply, USB cable): 2 Lbs.
  • Gross shipping weight: 4 Lbs.

    WARRANTY

  • 2-years. Programmer is warranted to be free of manufacturing or workmanship defects for two (2) years from the date of purchase. Warranty covers parts, labor, and free UPS ground shipping from Advin back to customer. (Free ground shipping applies to 48-states and Canada only).

    INCLUDED ITEMS

  • Programmer unit with 48-pin DIP ZIF socket adapter.
  • USB Cable.
  • AC power supply.
  • Free S/W downloads and updates form the web.
  • Registration and user-feedback form.

    <align=left>

    EEPROM Programmer SuperPro-610P
    Programmer    		 EPROM Programmer SuperPro-610P backview
    Back View    		 Universal Programmer USB cable
    USB Cable
    EPROM Programmer SuperPro-610PPower Supply

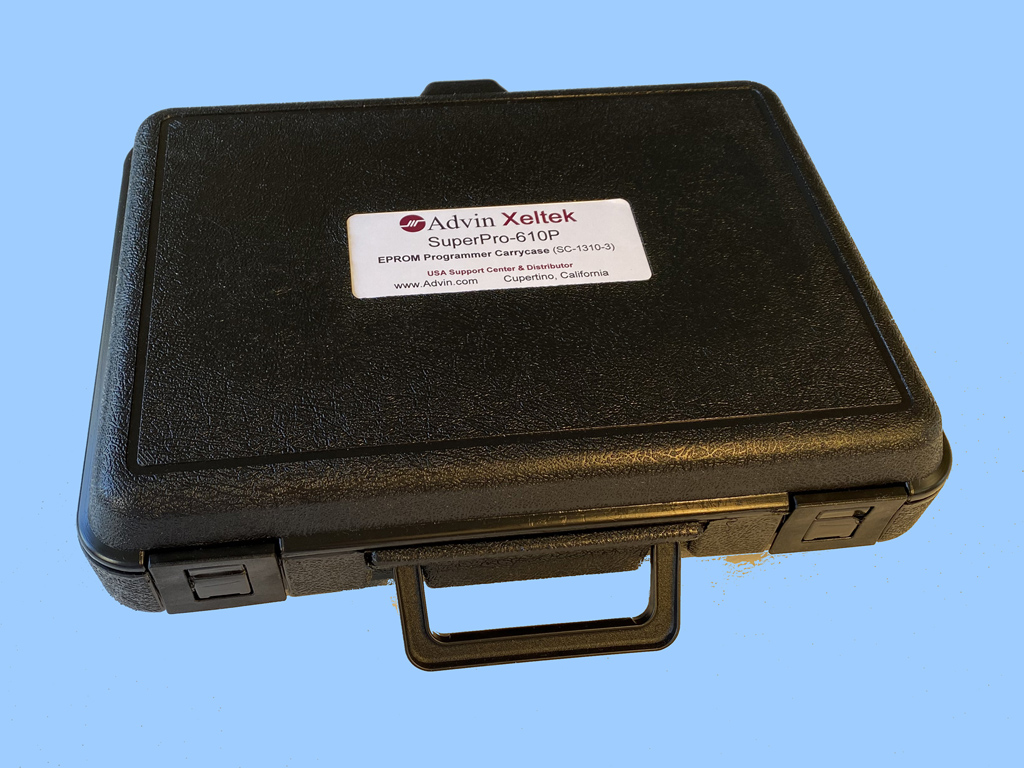

    AC Power Supply    		 EPROM Programmer SuperPro-610P carry case

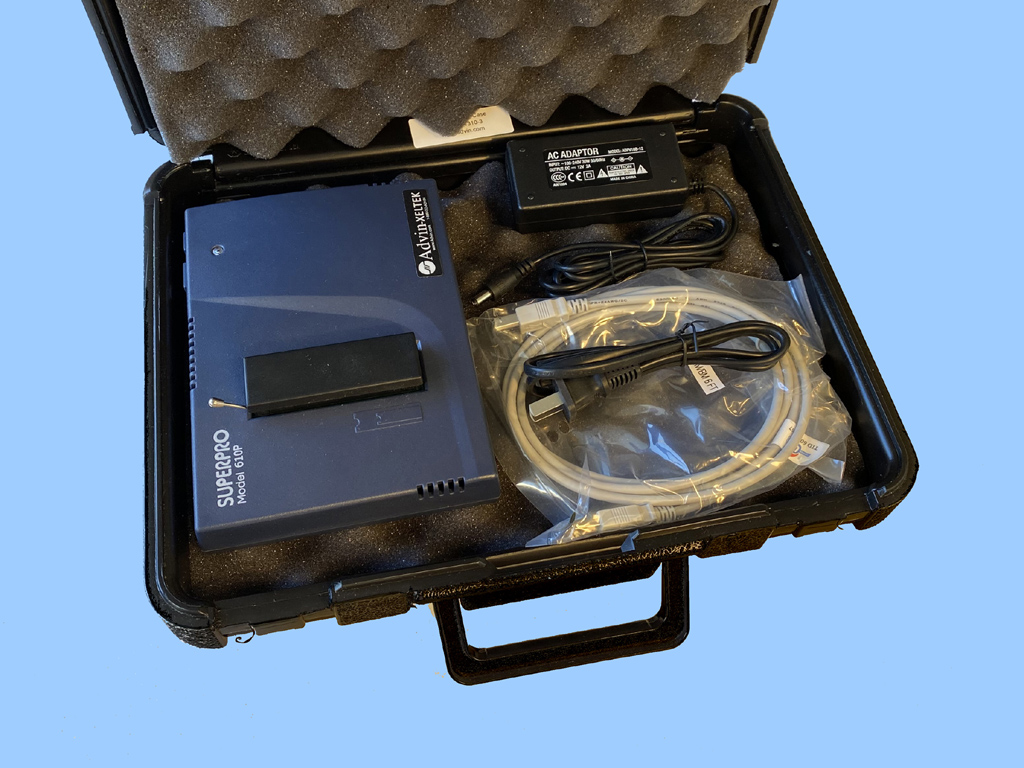

    Optional Carry Case    		 EEPROM Programmer SuperPro-610P case Inside View

    OPTIONAL ITEMS  </align=left>

  • Programmer socket adapters for different SMD device packages.
    Please see      SMD to Programmer Adapters
  • Programmer carry case
