Description

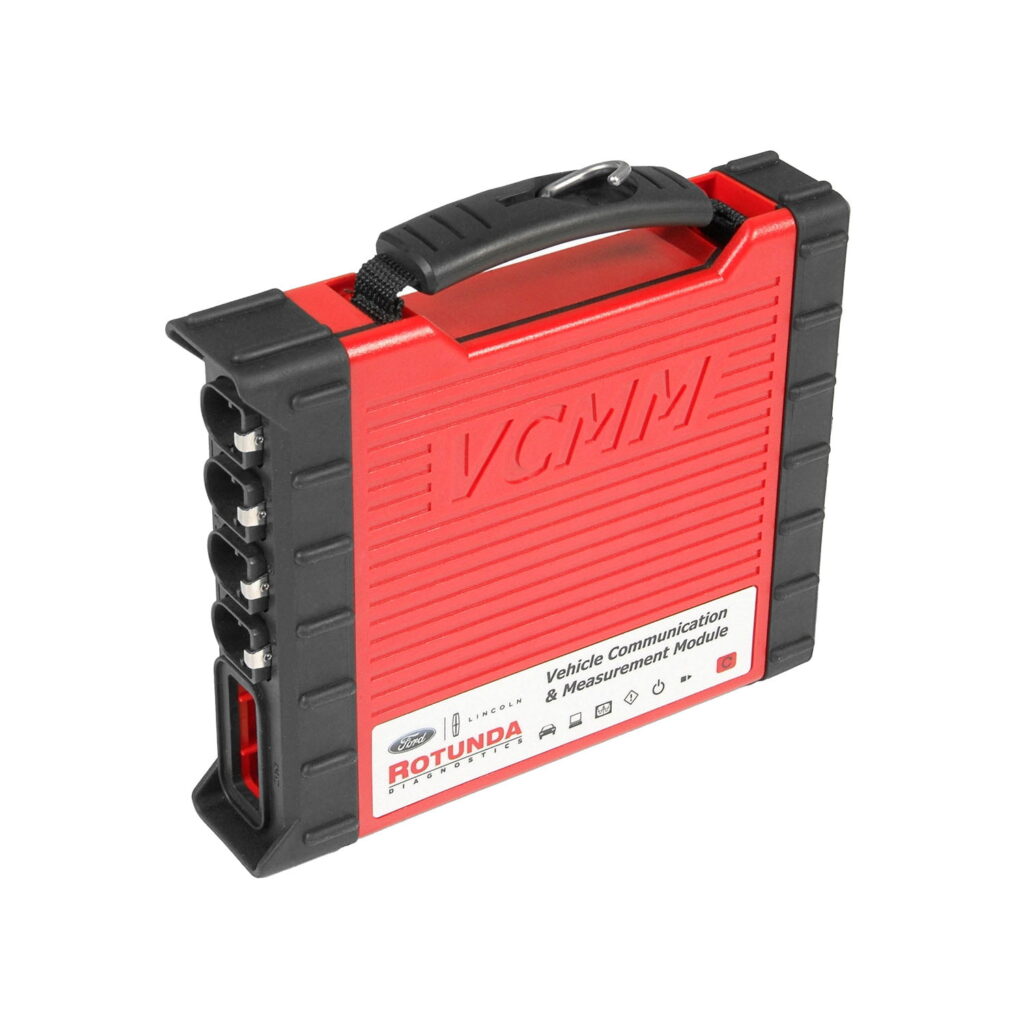

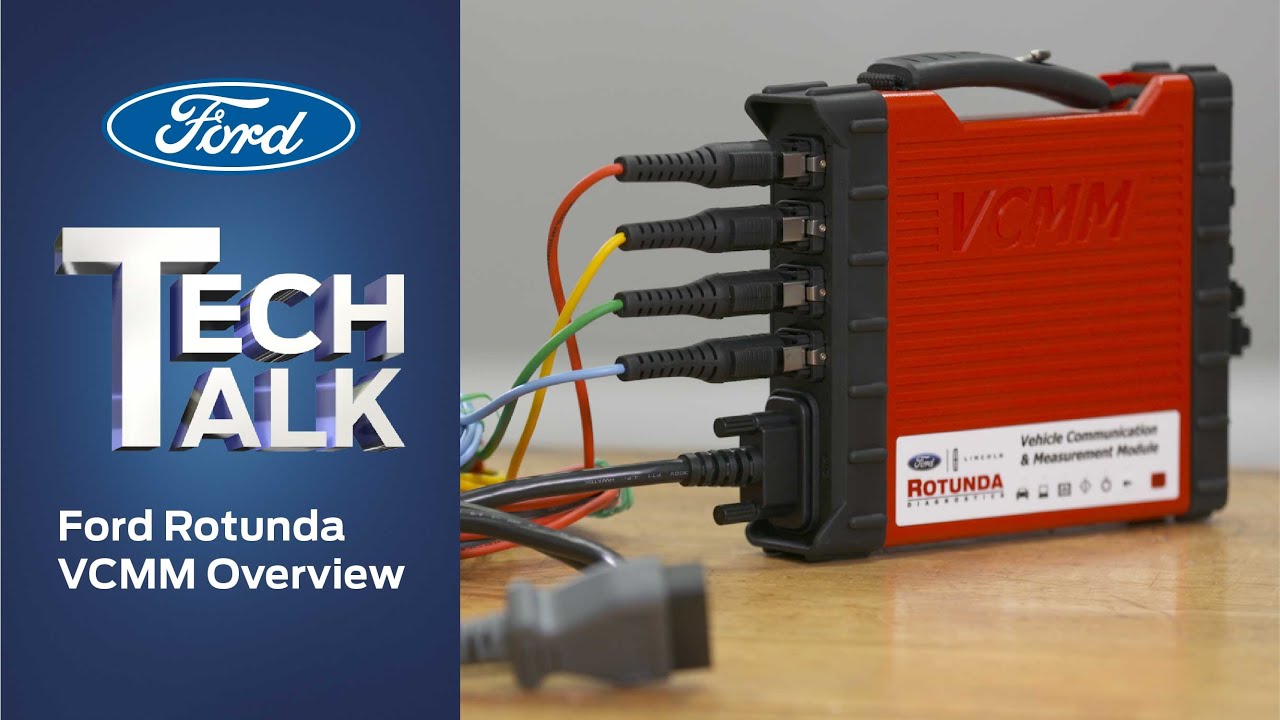

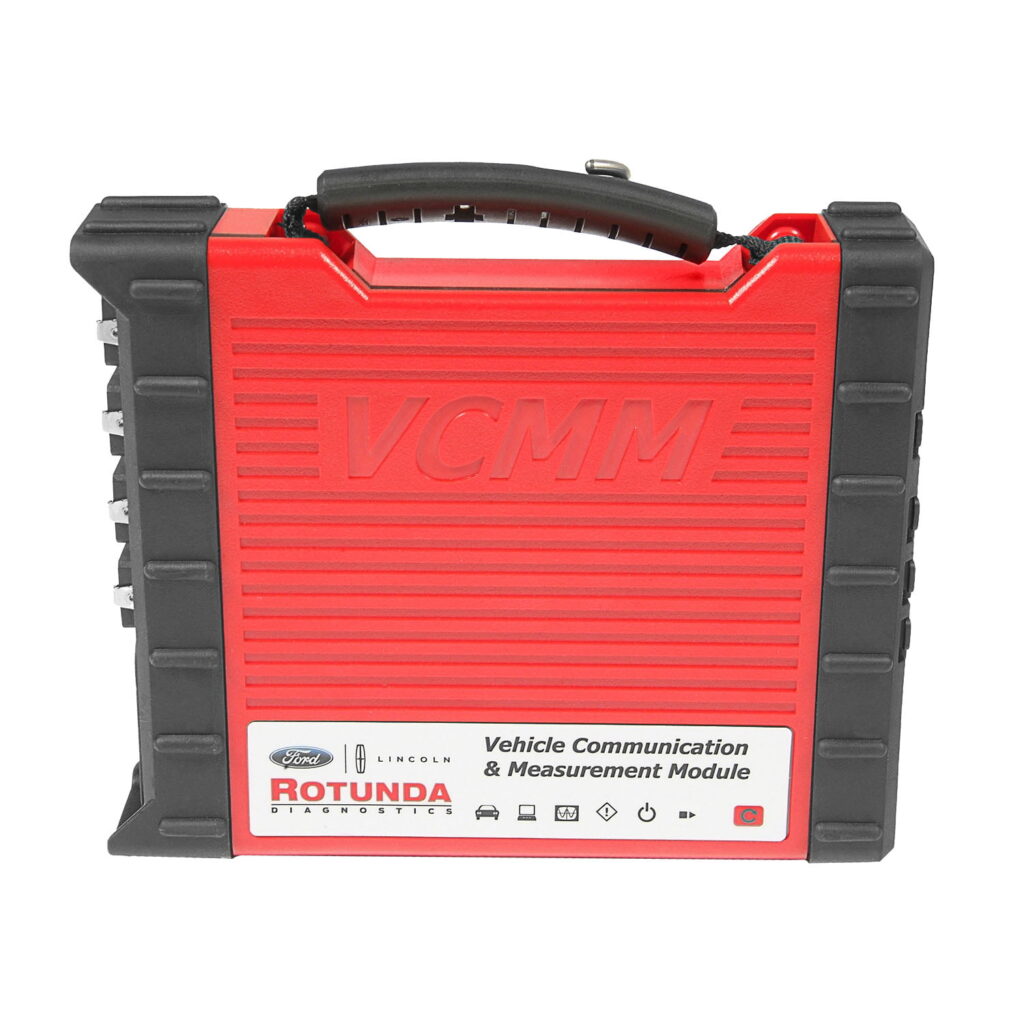

Ford Rotunda VCMM Diagnostics Kit
Vehicle Communication (VCM II capability)
– Customer Flight Recorder capable
– 4-Channel Oscilloscope
– 4-Channel Digital Multi-meter

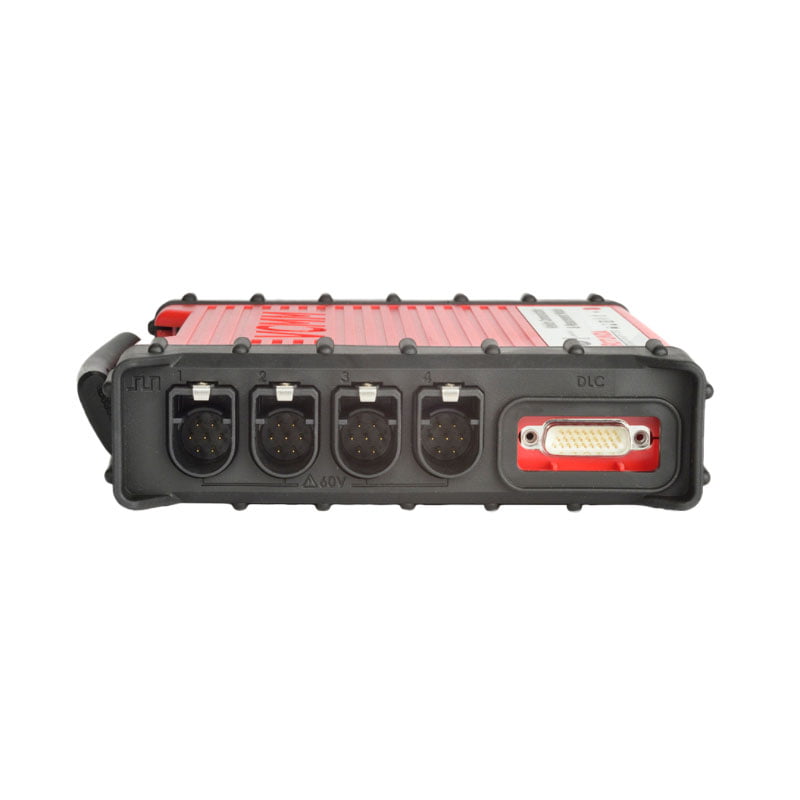

– 5th-Channel direct monitoring of the DLC connector
– Vibration Analysis
– Driveline Balance
– Signal Generator
Vibration Analysis and Driveline Balance
– Similar functionality to the MTS 4000/4100
– Improved user interface with reduced configuration and setup time
– Color display
– Record capacity
– Strobe light Pick up loop for improved component identification*
– Second vibration transducer
– Dual Plane driveline balance
The Digital Multi-Meter
– Monitor up to four independent readings at the same time
– apture/Record history
– Graphing capability for up to two channels
– Voltage, Current, Resistance, Pulse Width, Duty Cycle, Frequency and Period
Signal Generator
– User configurable settings for signal waveform types: sine, square, triangle, pulse generator, DC voltage and arbitrary.
– Verify integrity of module input wiring and the module hardware
– Improved interface and greater adjustability of voltage and frequency.

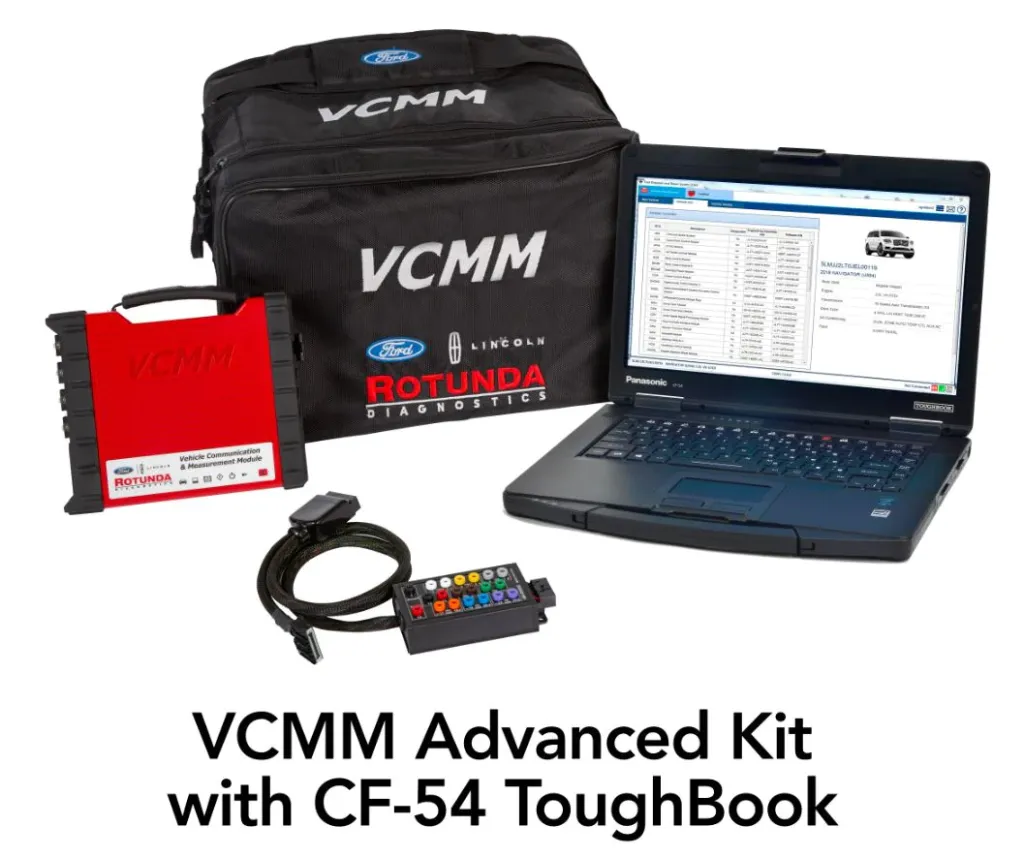

FORD ® VCMM PART NUMBER
– VCMM Unit
– Wireless Communications with Host (2 ea. WiFi Adapters)
– DLC Cable
– USB Cable
– Storage Case
– External Power Cable (Battery)
– USB Drive with Quick Start Guide
– Kit of All Probe Tips and Alligator Clips
Probe Tips: Red, Blue, Yellow, Green, Black
Alligator Clips: Small Red, Small Blue, Small Yellow,
Small Green, Small Black (4), Large Black (2)
– Universal Probe Tip Adapter (Set of 4)
– Low Current Probe
– High Current Probe
– Pressure Vacuum Transducer (PVT)
– Fuel Hose Assembly
– Transmission Extension Hose
– Red Probe with Tick
– Probe Tip Adapters (Set of 19)
– Temperature Probe
– Vibration Analyzer Accelerometer “A”
– NVH Timing Light Inductive Loop
– AC/DC Power Supply
