Oscilloscope Launch Scope channels PRO3S+ V5.0/PAD VII

Name: Oscilloscope Launch Scope channels PRO3S
SKU: 24479
Availability: InStock

Launch O2-2 Scope Box allows the user to capture a particular waveform which makes the process 70% more efficient compared to other scopes. It features the ability to record and playback high-resolution waveform data for future analysis. Its ability to input names and characters directly by clicking on the virtual keyboard streamlines the process and contributes to 90% of efficiency improvement.

LAUNCH X-431 Oscilloscope O2-2 Scopebox Analyzer 4 Channels Digital Scopebox Tester USB Port

X-431 Oscilloscope O2-2 Scopebox Highligts:

4 channels
Bandwidth 100MHz
Auto configuration
Save waveforms with one click
Cursor measurement
One-click preset waveform parameter settings
Demo mode
Online help
Waveform math operations
23 automatic measurements
LAUNCH X-431 Oscilloscope works for x431 PRO ELITE ,X431 Throttle, X431 Pad II AE, X431 Torque, X431 Turbo, X431 PAD V, X431 PAD VII Elite , X431 IMMO Elite , X431 IMMO PLUS etc.

Features:

One key enable function
Access to 23 variants of automatic measurements that are displayed on one screen for an easy switch.
Buffer memory up to 50M.
Use the zoom in/out feature to review precise details
Customizable personal system settings that can be saved as configuration files for viewing
Self-calibration function allows optimization of the oscilloscope signal path for maximum measurement accuracy.
Magnifies waveform math operations, such as addition, subtraction, multiplication and FFT function for high level waveform analysis.
Multiple automotive tests that include circuits, sensors, actuators, ignition tests and more.
Multi-language user interface.
USB Sync Data Transfer to external devices such as laptop, tablet, etc….

How to connect the cables?

Different application scenarios require different connection methods (no matter which application scenario, the following connections are required):

First, power the oscilloscope box through the double-clip power cable: Connect one end of the double-clip power cable to the power interface of the oscilloscope box, and the other end to the vehicle battery to draw power (red is connected to the positive pole, black is connected to the negative pole).

Notes: * PADVII series tablets support USB power supply.

2. Connect the Type B terminal of the USB cable to the Type B interface of the oscilloscope, and connect the other end to the USB interface of the diagnostic device.

Package Includes:

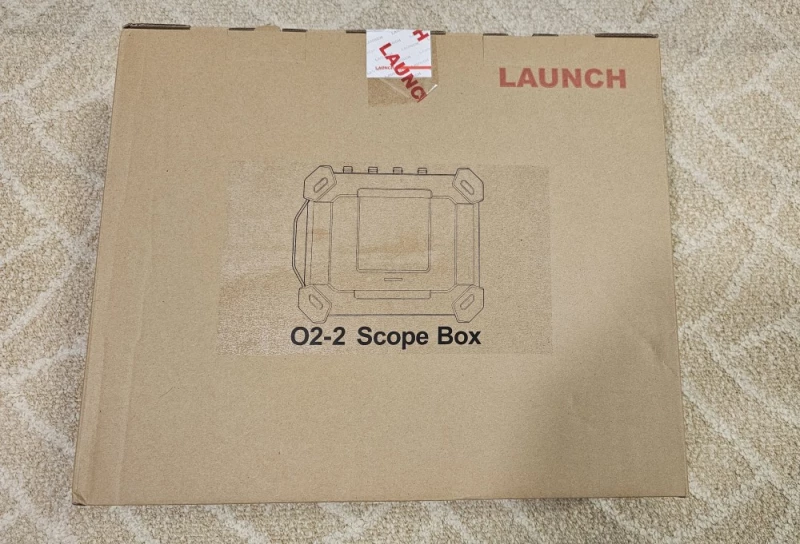

1pc x Launch O2-2 main unit
4pcs x HT 30 test lines
1pc x HT25 secondary ignition pick-up line
1pc x battery clip cable
1pc x USB cable
2pcs x HT201 attenuator
20pcs x piercing needles
2 pairs x multimeter probes
2 pairs x crocodile clips
5pcs x colored 4 female probes
4pcs x clipper fuses(5*20mm)
2pcs x screw head
1pc x user manual
1pc x color label
1pc x packing list
