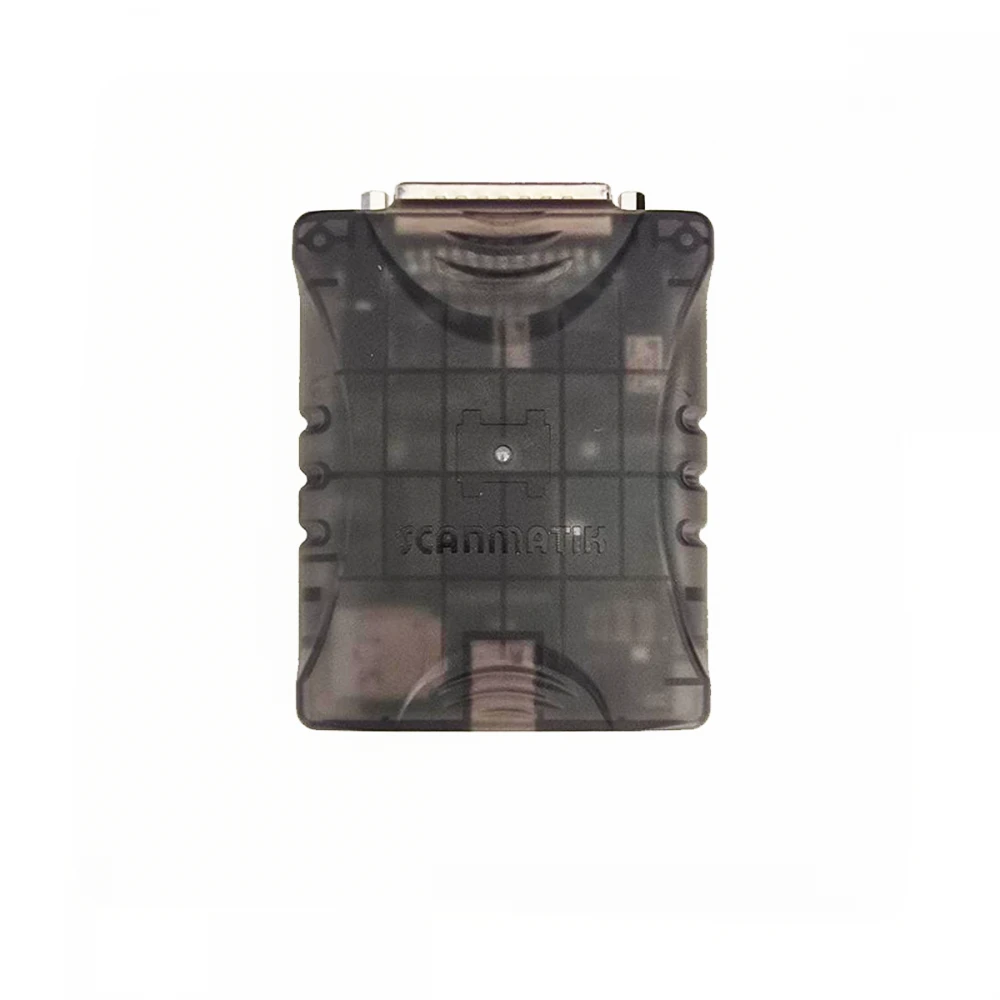

Scanmatik 3 | Electronic Control Systems Diagnostic Scanner

Name: Scanmatik 3 Electronic Control Systems Diagnostic Scanner
SKU: 24064
Availability: InStock

Scanmatik 3

Professional multibrand auto scanner is designed for diagnostics of electronic control systems of modern cars. Works with a personal computer, tablet or smartphone, programs for Windows and Android are included.

When installing the driver (included in the kit) works with third-party diagnostic software made under the standards SAE J2534 and RP1210, as well as with bootloaders, supplying programming authorization voltages to various pins of the diagnostic connector.

Differences between Scanmatik scanner’s

	Scanmatik 3	Scanmatik 2 PRO
Power supply voltage	5-35V	5-35V
Operation with 24V on-board power supply possible	Yes	Yes
ISO-9141/ISO-14230 (K-LINE)	13 dial-up lines	13 dial-up lines
J1850 VPW/PWM	Yes	Yes
SCI (Chrysler programs up to ~05)	Yes	Yes
CAN FD	5	No
CAN 2.0	5	4
SW CAN	1	1
Ethernet 10/100BASE-TX (DoIP)	Yes	No
Programming voltage 5-20V (J2534)	Yes, on pins 6, 8, 9, 11, 12, 13, 14 of the OBD2 connector	Yes, on pins 6, 8, 11, 12, 13, 14 of the OBD2 connector
Voltage programming (AUX)	Yes, cable included	Yes (via optional cable)
K lines shorted to ground	Yes	Yes
Protection system for K and CAN lines	Yes	Yes
Power adapter	Built-in pulse software-controlled power supply of our own design	Built-in pulse software-controlled power supply of our own design
USB data transfer rate	up to 480 Mbps	up to 12 Mbps
USB Port Protection	Galvanic isolation of USB port (including power supply)	Galvanic isolation of USB port (including power supply)
Wireless connection type	Wi-Fi IEEE 802.11 b/g/n	Bluetooth
Frame	Translucent, with latches and screws, extra thick with additional stiffening ribs inside	Translucent, with latches and screws, extra thick with additional stiffening ribs inside

Interfaces for communication with PC (Tablet, Smartphone) – USB or Wi-Fi;
Power supply voltage: 5… 35V from the vehicle network or USB (galvanic isolation with power supply);
Current consumption, not more than 350mA;
Pulsed power supplies of the company’s own design (no heating, wide input voltage range from 5 to 55V);
Wi-Fi transceiver standard: IEEE 802.11b/g/n

Supported data buses:
- 13 x ISO-9141/ISO-14230 (K-LINE);
- 1 x J1850VPW;
- 1 x J1850PWM;
- 4 x CAN 2.0/CAN-FD;
- 1 x Single Wire CAN;
- 1 x Ethernet 10/100BASE-TX.

Specification

Built-in multiplexer for switching diagnostic lines;
The widest support of J2534-1/2 standards;
Programming voltage supply (5-20V) to the OBD2 connector pins: 6, 8, 9, 11, 12, 13, 14;
AUX programming voltage output;
Adapter dimensions (L x W x H), not more than: 97×75×22mm;
Weight of the device in the basic configuration, no more than: 0.7 kg
