Description

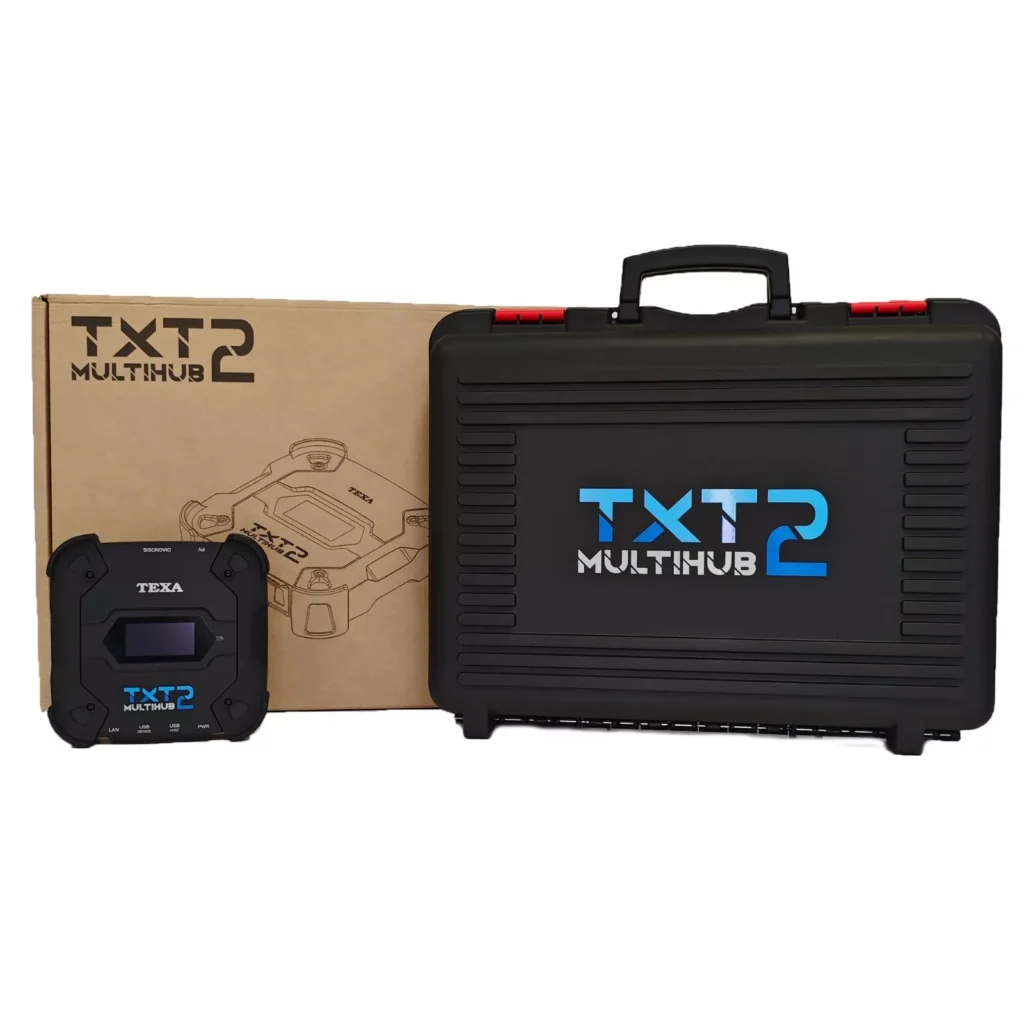

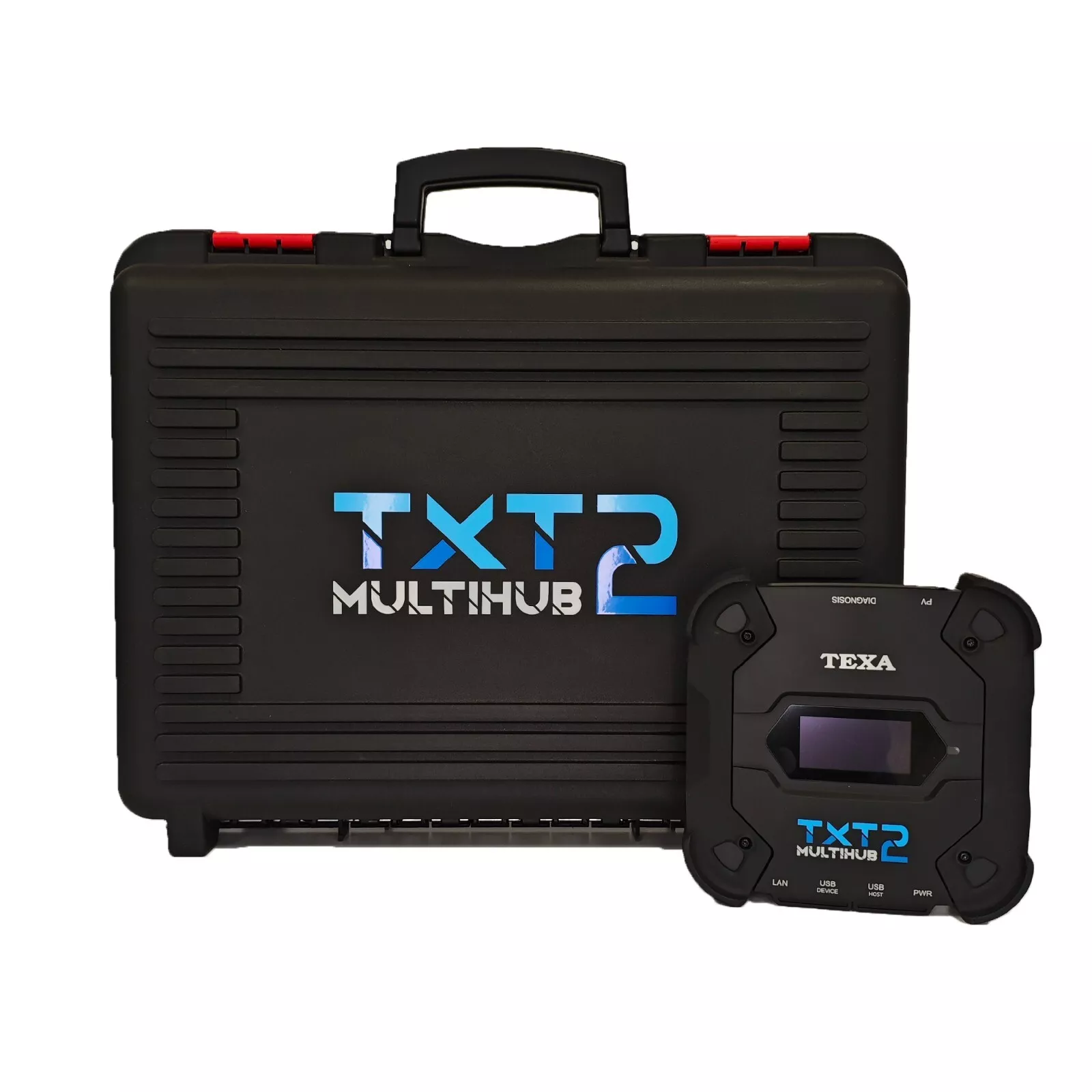

TEXA D195A0 NAVIGATOR TXT 2 MULTIHUB DIAGNOSTIC IDC6 SCANNER INTERFACE ONLY
Multibrand diagnostics by TEXA
In recent years, the diffusion of electronics on board vehicles has been exponential and has reached a very high level of complexity. Today repair specialists must be capable of working at their best on different types of vehicles, with different diagnostic protocols and multiple connection modes.
In such a context, TEXA developed TXT MULTIHUB 2, an extremely versatile vehicle interface that easily adapts to maintenance activities making them quick and intuitive, in any situation.
It is a technologically advanced solution, rich in unique technical and constructive features, such as: the possibility to operate in 5 environments, the presence of a 2.42-inch, white-backlit display, the IP53 certified rugged design, an intelligent connectivity guaranteed by the Linux operating system, the management of CAN-FD, DoIP, Pass-Thru protocols, remote diagnosis and much more.
A unique tool, for all the environments
TXT MULTIHUB 2 is the only diagnostic tool capable of intervening on cars, heavy-duty vehicles, motorcycles, boats, agricultural and construction vehicles. At all times it guarantees unparalleled performances so to complete operations the best way possible, with maximum customer satisfaction.
Technical Specifications
Main processor:
• Type: iMX6 1 GHz
• DDR3L SDRAM: 512 MByte
• Mass Storage: eMMC 8 GByte
Coprocessor:
• Type: STM32H735IGK6 550MHz
• RAM: 2 MByte SRAM, 32 MByte SDRAM
• Flash: 2 MByte
Power supply connector: PWR: 2.1 DC jack
Power supply: 12 – 24 V (direct voltage)
(from vehicle battery via OBD connector or specific
wirings)
Consumption: 1 A @12 V
0.5 A @24 V
USB connectors:
• USB: USB 2.0 host type A max 1 A out
• USB DEVICE: USB 2.0 device type B (priority connector)
Great usability, thanks to the built-in display
TXT MULTIHUB 2 is equipped with a practical 2.42-inch, white-backlit display that gives it great usability and the possibility to view the information based on three types of messages:
communication mode with the display unit
charging voltage of the battery in the vehicle it is connected to
operating status that can be standard diagnosis, DoIP Wi-Fi, DoIP Ethernet, Pass-Thru, CAN-FD.
Robust, practical, handy a “rugged tool” perfect in any situation
TXT MULTIHUB 2 is equipped with a special reinforced body with anti-shock corners. Its certified protection level is IP53, therefore it resists splashes of water and dust.
