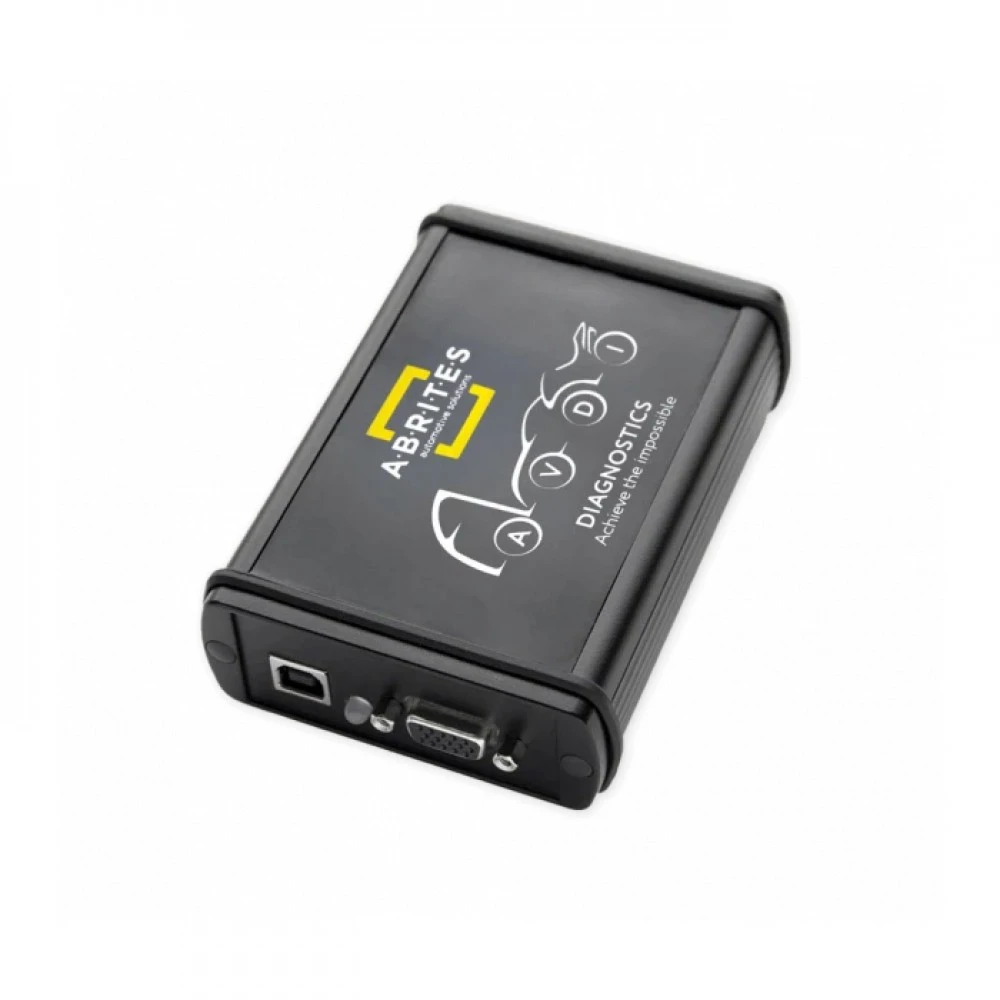

Universal Vehicle Diagnostic Interface | ABRITES AVDI

Name: Universal Vehicle Diagnostic Interface ABRITES AVDI
SKU: 24008
Availability: InStock

The ABRITES Vehicle Diagnostics Interface (AVDI) is the latest version of our interface that allows the connection between our state-of-the-art software and your vehicles.

Each AVDI includes an Annual Maintenance Subscription (AMS) for the first year of ownership. In order to make sure that you get the full AVDI experience straight away. AMS allows receiving the latest updates on the AVDI diagnostic software as well as access to online services.

The Support Plan Service (SPS) guarantees swift and effective technical support from our team of experienced professionals and needs to be purchased separately.

Furthermore, you will be able to perform basic diagnostics to all supported brands – Audi, Volkswagen, Seat, Skoda, Bentley, Lamborghini, BMW, MINI, Rolls Royce, Renault, Dacia, Mercedes-Benz, SMART, Mitsubishi, GM, Peugeot, Citroen, Opel/Vauxhall, Porsche, Honda, Ford, Mazda, Jaguar, Land Rover, Toyota, Lexus, Volvo, FIAT, Alfa Romeo, Lancia, Jeep, Subaru, Nissan, Infiniti, Chrysler, Dodge, Kia, Hyundai, Suzuki, Daihatsu, DAF, Aprilia, BMW, Bombardier Recreational Products and others.

The basic diagnostics that can be performed to all brands listed above are as follows:

Complete vehicle scan
Module identification – see all modules in the vehicle, complete with VIN and part numbers (where applicable)
Reading and clearing diagnostic trouble codes (DTCs)
Live data display – see live data from the sensors in the vehicle in real time
Actuator testing – identify any possible issues in the car by performing actuator tests

AVDI is compatible with all Abrites diagnostic software:

Bikes, Snowmobiles, Water scooters, Heavy duty vehicles
BMW, Mini
Chrysler, Jeep, Dodge
DAF
Daihatsu
FCA – Fiat, Alfa Romeo, Lancia
Ford, Mazda
Hyundai, KIA
Jaguar, Land Rover
Mercedes, Smart, Maybach
Mitsubishi
Nissan, Infiniti
Opel, Vauxhall
Peugeot, Citroen
Renault, Dacia
Subaru
Suzuki
Tesla
Toyota, Lexus, Scion
VAG – Volkswagen, Audi, Seat, Skoda, Porsche
Volvo

SAE J2534 PassThru compliant driver:

Compatible with many 3rd party diagnostic software
VCI emulator which enables AVDI to emulate different interface units (e.g. K-line interface and ELM327 interface)

J2534 PassThru compatibility:

BMW – DIS over K-line and CAN bus
BMW – E-Sys, INPA, EDIABAS, NCS Expert, NFS over K-line and CAN bus
BMW Rheingold ISTA-P
BMW
MINI
Bombardier diagnostic software
Mercedes DAS/Xentry – Star Diagnosis
Mercedes
Evinrude Diagnostics
Fiat EXAMINER
FCA
Ford Scanner
FORD
GM – Tech2Win, GDS2 and SPS diagnostic software
GM
Honda/Acura HDS
HONDA
Hyundai/KIA GDS
HYUNDAI
KIA
Jaguar Land Rover Symptom Driven Diagnostics (JLR SDD)
JAGUAR
LAND ROVER
Mitsubishi MUT3
Nissan Consult III+
NISSAN
Land Rover/Jaguar IDS
Subaru Select Monitor III
SUBARU
Suzuki/Yamaha Marine Diagnostics
Toyota/Lexus/Scion Techstream
TOYOTA
LEXUS
Volvo VIDA
VOLVO
VW/Audi/Seat/Skoda/Bentley/Lamborghini ODIS
VW
AUDI
SKODA
SEAT
BENTLEY
LAMBORGHINI
Webasto TT
VCI emulator which enables AVDI to emulate different interface units (e.g. K-line interface and ELM327 interface)

- Dimensions:
13x5x25 cm
- Weight:
0,6 kg
- K-line ISO 9141 (100 mA) multiplexed to 24 different pins of the diagnostic connector
- ISO14230 compliant
- SAE J1850 VPW, PWM compliant (additional adapter required)
- Single wire CAN bus multiplexed to different pins of diagnostic connector
- Dual wire low speed CAN bus multiplexed to different pins of diagnostic connector
- Dual wire high speed CAN bus multiplexed to different pins of diagnostic connector
- CAN bus GMLAN, ISO14229, ISO15765, J1939, ISO22901 compliant
- Analog Input USB interface to the PC Supply voltage 8..30V DC OBDII cable
- Updatable firmware
FULL LIST OF BASIC AVDI FUNCTIONALITIES:

BUDS
BR002 – VCINPL B.U.D.S

CHRYSLER
CR007 – Engine Control Unit Flash Manager
Read/write Data Flash and Program Flash for EDC15C2 and EDC16CP31 ECUs

FIAT
FN007 – Transponder Maker
FN008 – Key Learning
FN011 – BCM Read/Update
FN012 – BCM and Key Manager
FN017 – PIN and Key Manager for FCA vehicles

FORD
FR009 – Airbag
Airbag clear crash data and renew – RCM module with the following processor: XC23xx data flash for FORD/Mazda/JLR and Volvo, as well as TMS470 + EEPROM 25320/25640 for Ford/JLR

JLR
JL002 – Key Learning
JL003 – Cluster Calibration
JL004 – Key Learning (DPLA, FK72, HPLA)

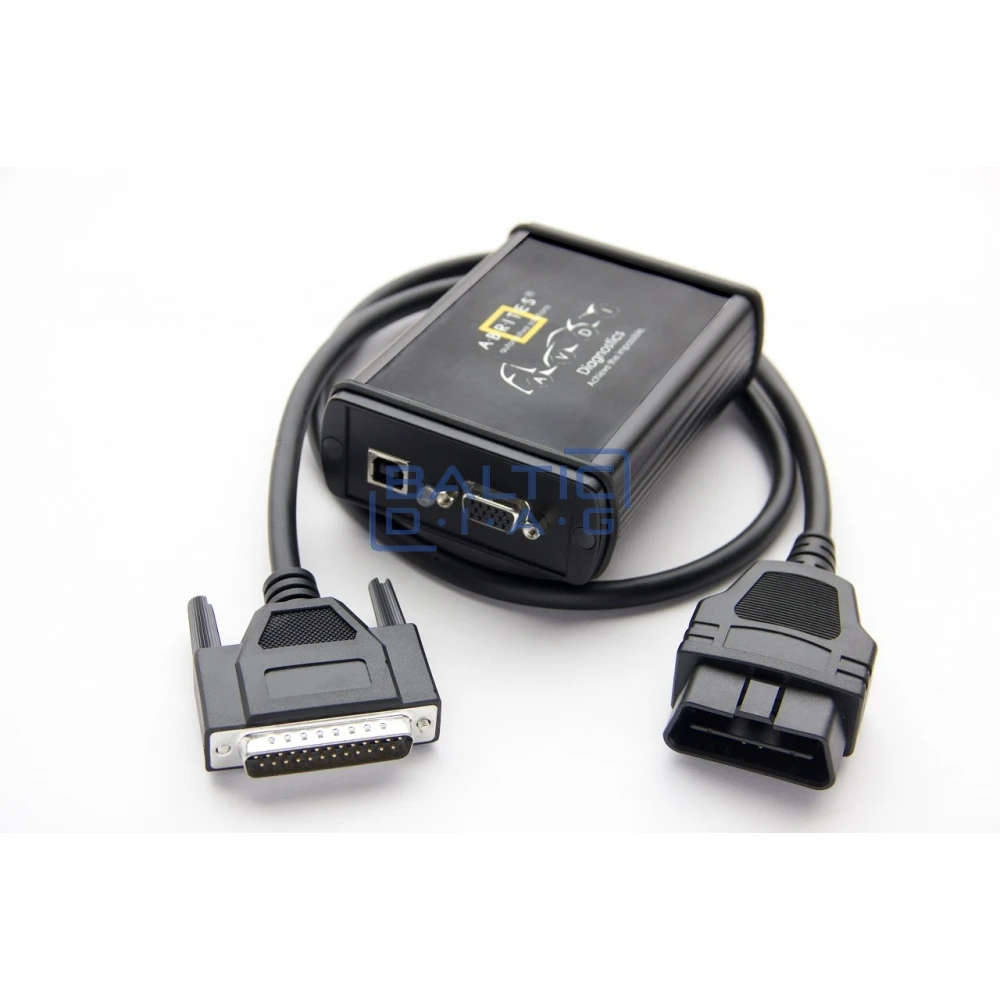

The basic package of AVDI interface contains:

Abrites Vehicle Diagnostics Interface
AVDI OBDII cable (SAE J1962) – Used to connect the AVDI to the vehicle
USB cable with extra power – Used to connect the AVDI to the PC

Initial purchase of AVDI interface includes one year software update of the basic diagnostic suite, tools and our online services and one year free basic support plan (by email only).
