Description
ATS Intelligent Vibration Analyzer
The Intelligent Vibration Analyzer (iVA) from ATS (Automotive Test Solutions) is a cutting-edge diagnostic tool designed to quickly pinpoint vibration issues in vehicles. With its Quad Vibration Technology™ (QVT), the iVA can accurately locate and identify vibrations, rating their severity with advanced color coding.
Key Features:
- Identifies vibration sources:
- Wheel/Suspension
- Brake
- Driveshaft
- Engine and Engine Driven Pulleys
- Transmission and Transfer case
- Capable of locating multiple vibrations simultaneously
- Connects to most vehicles in under 5 minutes

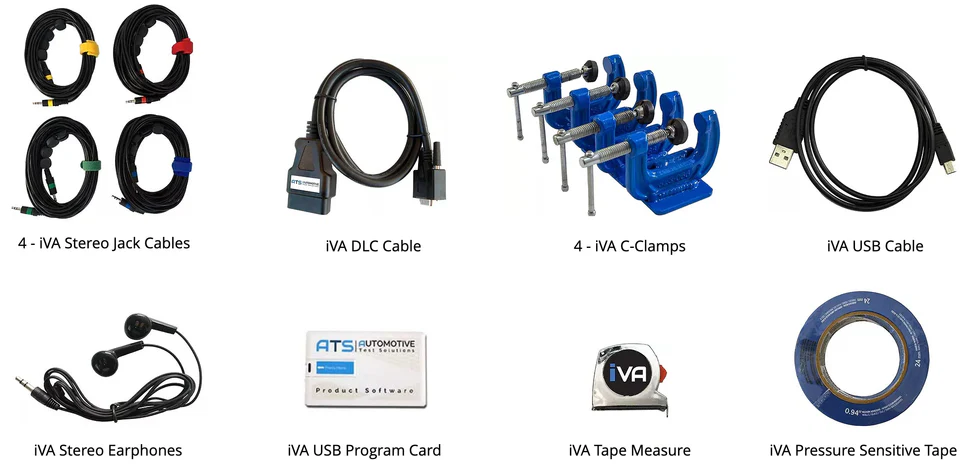

Included Components:
- Intelligent Vibration Analyzer Module™ (iVA Module)
- Smart Vibration Sensor™ (SVS)

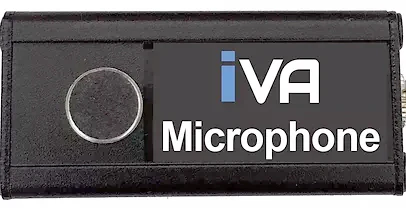

- iVA Microphone

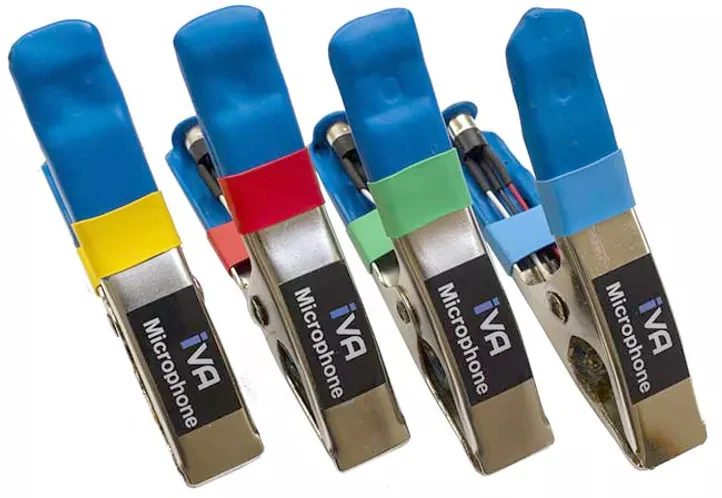

- iVA Microphone Clamp
- iVA Stereo Jack Cable
- iVA Data Link Connector Cable
- iVA C-Clamps
- iVA USB Cable
- iVA USB Card
- iVA Tape Measure
- iVA Pressure Sensitive Tape
- Lifetime Technical Support from AE Tools & Computers

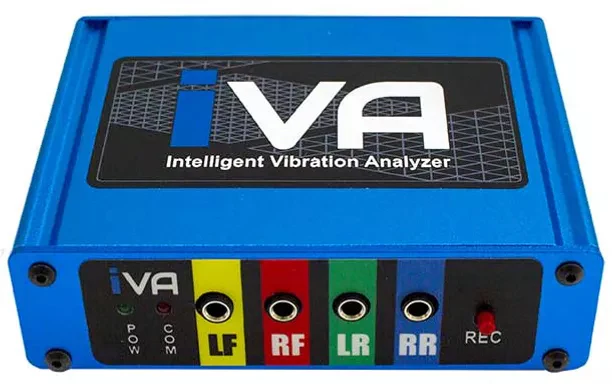

The iVA Module houses an advanced electronic system with a Data Acquisition Device (DAQ) for sampling signals from Smart Vibration Sensors and iVA Microphones. It also contains a Vehicle Communications Interface (VCI) for communication with vehicle Engine Control Modules.
Communication Bus Types Supported:
- J1850 VPW, J1850 MPW, J1850 PWM with IFR
- ISO 9141-2
- KPW2000, KPW2000 Slow init
- CAN

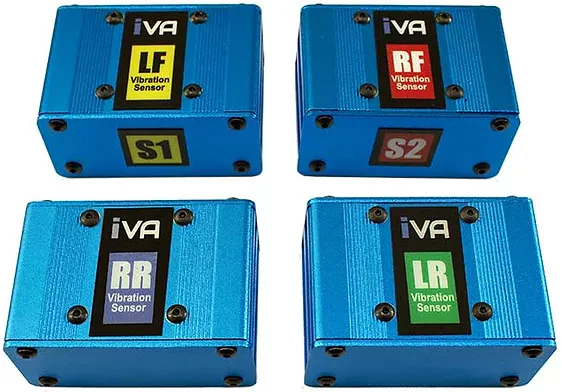

The Smart Vibration Sensor™ (SVS) uses multiple 3-axis accelerometers to locate vibrating components, providing vibration analysis in all directions. The iVA Microphone captures sound waves, processed using Fast Fourier Frequency (FFT) or Frequency Plot (FP) modes.
The iVA comes with various accessories for easy attachment and operation, making it an indispensable tool for mechanics and technicians tackling vehicle vibration issues.
