Description
Best Sale Uav Data Link XK-304E-100 Remote Control System Video Data Link Transmitter and Receiver Wireless Video Data Telemetry Transmission Transmitter Receiver
Uav Data Link XK-304E Features
Wide frequency range and wide bandwidth are supported.
Rich control interfaces.
High carrier noise ratio.
Wide input voltage range, supporting DC8 ~ 30V voltage input.
Low power consumption.
The maximum downlink configuration rate is 30m, the bandwidth is 20m, the maximum uplink configuration rate is 26m, and the bandwidth is 20m.
Support OTA upgrade, local and remote upgrade.
Adaptive frequency hopping, strong anti-interference ability.

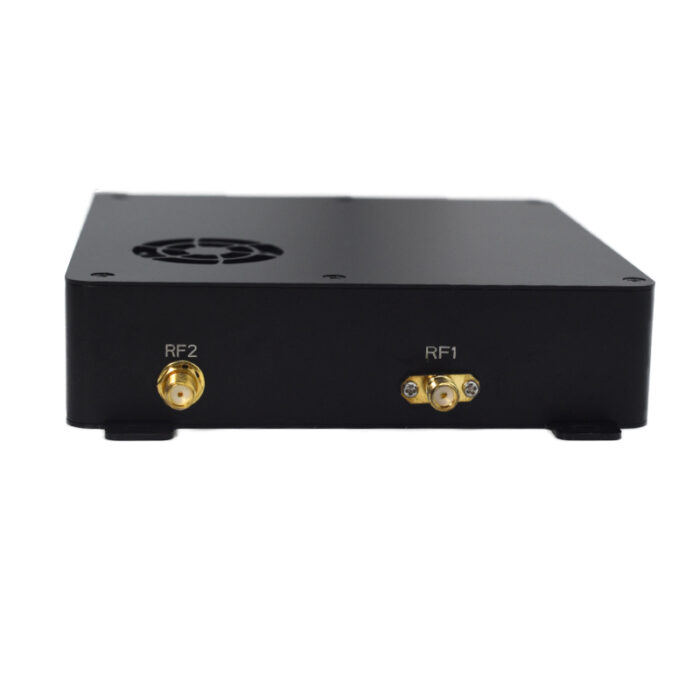

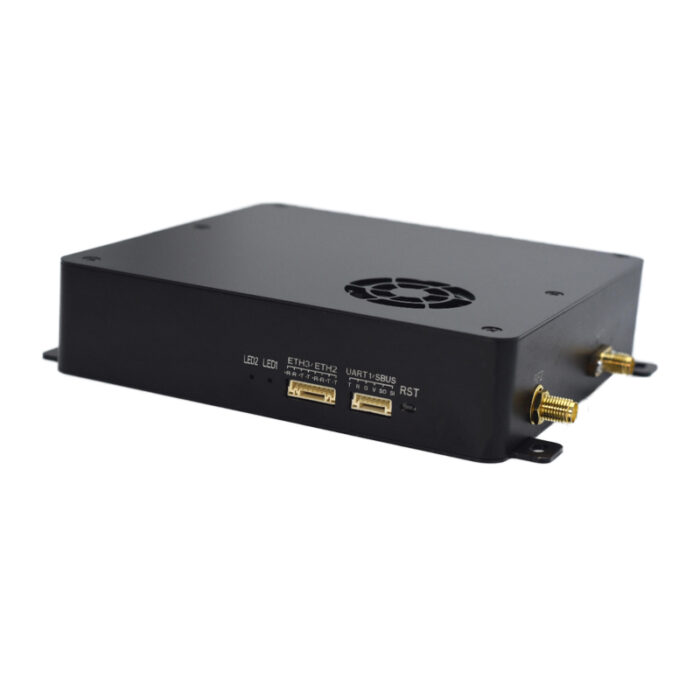

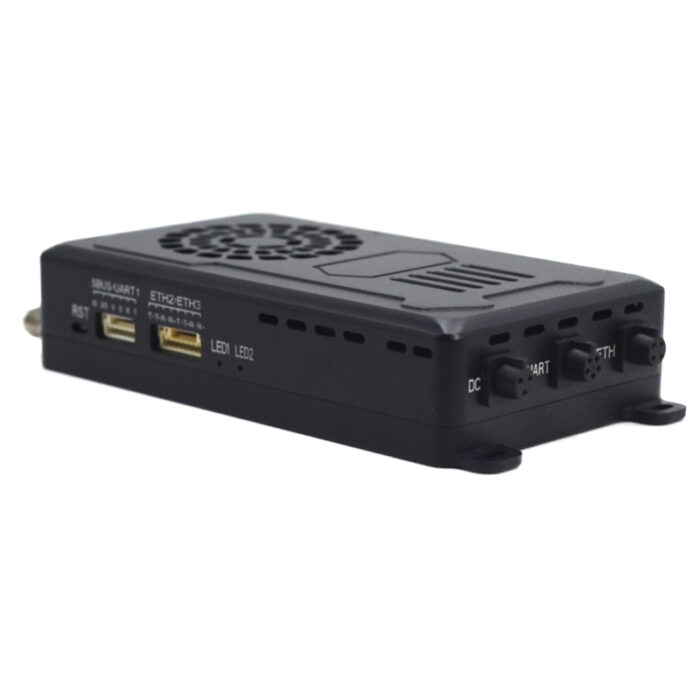

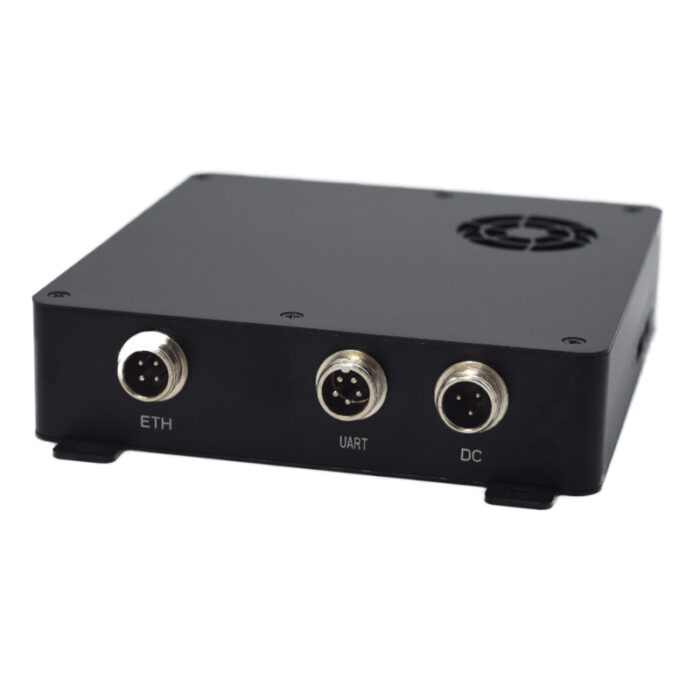

Uav Data Link XK-304E-100
XK-F304E-100 is a style of HD wireless digital video and data transmission device, with low power consumption, long communication distance and other characteristics, Support the transmission of the network data, flight control data, PTZ control data, remote control data…at the same time.
The air unit can be configured as point-to-point and also point to multi-pointsrelay mode, Users only need to add air units to expand the application scenarios. At the same time, it has encryption function, and users can set the channel encryption key independently.
XK-F304E-100 supports transparent transmission protocol, which can transmit flight control data and other data information at the same time. The ground unit can interact data with ground station through serial port or network port (UDP / TCP). Support serial port and SBUs transparent transmission function.
Technical Parameters
| Item | Spec/Parameters | |
| Air Unit | Ground Unit | |
| Operation Voltage | DC12V~DC25V,Standard input DC22V | |
| Power Consumption | ≤20W @ 37dBm | |
| Modulation | OFDM | |
| Data interface | UART(TTL/RS232)/SBUS | |
| Frequency | 800MHz/1.4GHz/2.4Ghz,adjustable | |
| Channel rate | Uplink(Max): 30Mbps,Downlink(Max):26Mbps | |
| Bandwidth | 3/5/10/20MHz | |
| Latency | ≤15ms | |
| Tx Power | ≤37dBm(Adjustable) | |
| Antenna | 3.5dBi | 16dBi |
| Communication Protocol | IEEE802.3,Transparent serial data | |
| Communication | Point to Point, Point to Multi-Points relay mode | |
