Description
Resolution 384×288 Drone Thermal Imaging Infrared Module Thermal Camera For RC FPV Drone
Thermal Camera XK-C131
Resolution 384×288 Drone Thermal Imaging Infrared Module Thermal Camera For RC FPV Drone
The XK-C131 is a miniature FPV thermal camera that combines HD and drone camcorder features and is designed for RC FPV cars, aircraft, racing cars and drones.
The XK-C131 camera is small and easy to install, and the lens housing design makes it easier to install on your aircraft. Not only does it have all the features of a tiny drone camera, it also has thermal imaging to provide clear images in low-light or total darkness. The camera also comes with a lens cover that effectively protects the lens from dust and dirt.
This camera has a very high resolution, whether it is 384×288 resolution, it provides extremely high image quality. The open-stop shutter and adjustable focus feature allow you to adjust the effect as needed to meet a variety of shooting needs. Most importantly, the output resolution is very high, the picture quality is clear, can capture every moment.
TECHNICAL PARAMETERS
| Model | XK-C131 | |
| Specification parameters | ||
|
Movement parameters |
Detector type | Vanadium oxide uncooled infrared focal plane detector |
| Resolution | 384×288 | |
| Pixel Pitch | 12um | |
| Spectral Band | 8-14μm | |
| NETD | ≤40mK | |
| Frame rate | 50Hz | |
| shutter | Automatic shutter correction | |
|
Lens Parameters |
focusing | Adjustable focus |
| aperture | 1.0 | |
| Lens millimeters | 9.1mm | |
| FOV(H*V) | 29.3 ° ×22 ° | |
| Detection distance | people | 1100m |
| vehicle | 2574m | |
| Recognition distance | people | 300m |
| vehicle | 630m | |
|
function |
Pseudo color | White heat |
| Standard | PAL | |
| type of output | CVBS | |
| Power supply voltage | 4.5-18V | |
| power | 1000mw | |
| working temperature | -40℃~+80℃ | |
| Storage temperature | -50℃~+85℃ | |

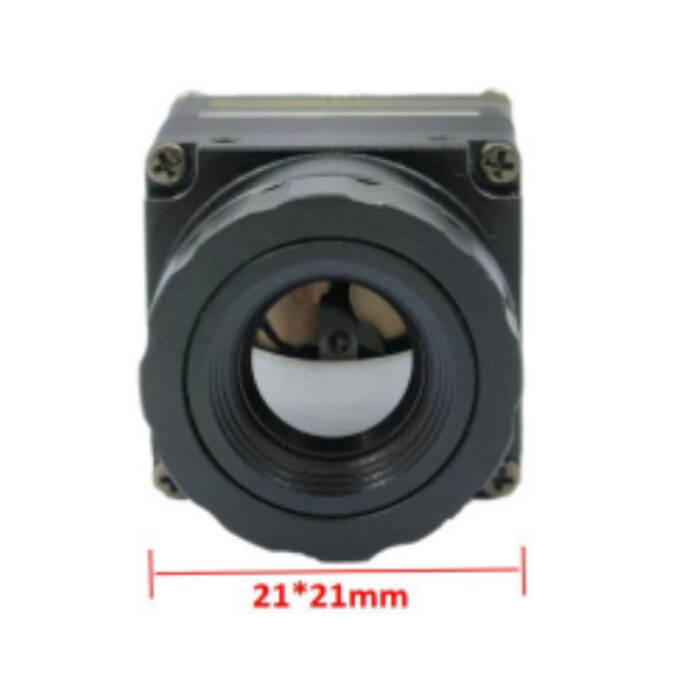

| size | 21*21MM | |
| weight | 22g | |
